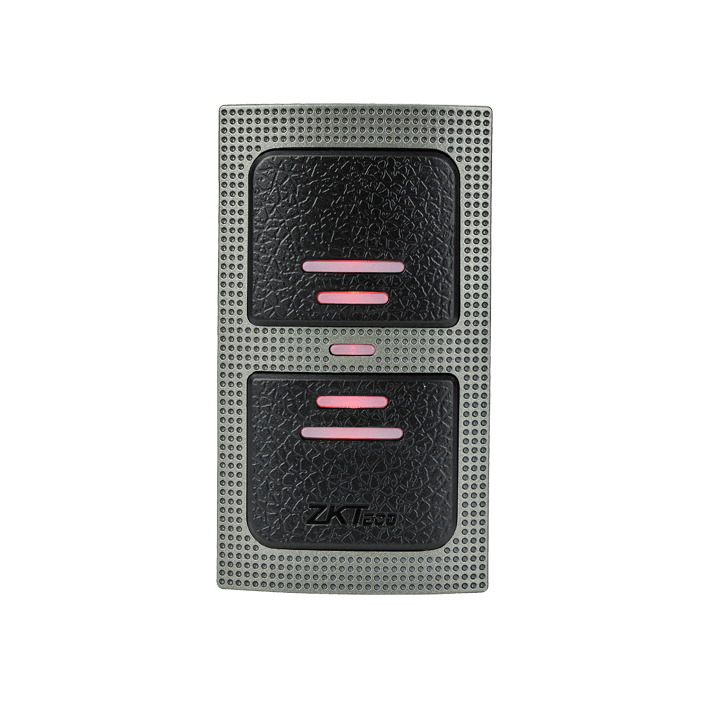

ZKTECO KR-500 Wiegand Card Readers

Call for Price

In stock

ZKTECO KR-500 Bangladesh

• Read range of up to 10cm for proximity card and 5cm for  Mifare card
• External LED control
• External Buzzer Control
• Indoor/Outdoor operation
• Solid Epoxy potted
• Waterproof IP64 or IP65
• Reverse Polarity Protection



ZKTECO KR-500 Bangladesh

Technical Specifications

Read Range• KRxxx-E: Up to 10CM  • KRxxx-M: Up to 5CM
Reading Time• ≤200ms
Input Port• External LED Control  • External Buzzer Control
Output Port• KRxxx-E: 26bit Wiegand (Default)  • KRxxx-M: 34bit Wiegand (Default)
Power/Current• DC 6-14V / Max.70mA
LED• Red and Green LEDs
Operating Temperature• -10°C to +65°C
Material• ABS+PC with texture
Operating Humidity• 10% to 90% relative humidity  • non-condensing
Beeper• Yes
Index of Protection• KR500-E/M: IP65  • KR501-E/M: IP65  • KR502-E/M: IP64  • KR503-E/M: IP65
