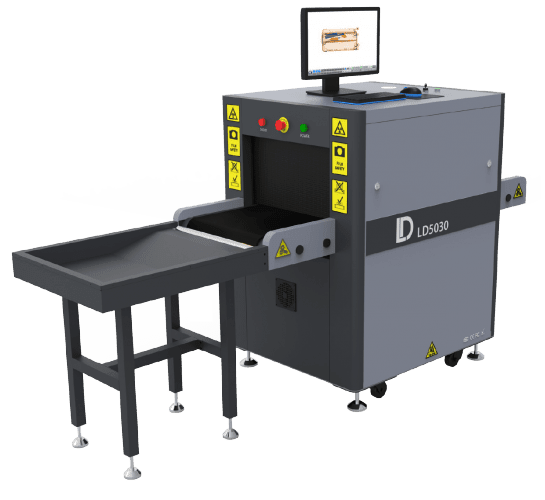

ZKTeco LD5030 Single Energy X-ray Inspection System

Call for Price

In stock

■ Tunnel Size 507 mm(W) x 304 mm(H)
■ Speed 0.20 m/s
■ Maximum Load ≤150 kg (Adequate
distribution)
■ Pseudo-color scanning image

X-RAY GENERATOR & IMAGE PERFORMANCE

Steel Penetration 8mm
Wire Resolution 32 AWG
Generator Cool Seal oil cooling / 100%
Anode Voltage 80 kV rated
Tube Current 0.8 mA



OPERATING ENVIRONMENT

Storage Temperature -20° to +60°C
Operating Temperature 0 to +40°C
Relative Humidity 5-95%



PHYSICAL PROPERTIES

Dimensions 1677 mm(L) x 1198mm(W) x 787 mm(H)
Tunnel Dimensions 507 mm(W) x 304 mm(H)
Package Size 1900mm(L) × 990mm(W) × 1485mm(H)
Package Weight 410KG
Conveyor Speed 0.20 m/sec
Conveyor Load Capacity 150 kg (evenly distributed)
Conveyor Height 75.5 cm
System Power 230 VAC +/ -10% / 60/50 Hz (EU)
110 VAC +/ -10% / 60/50 Hz (US)
