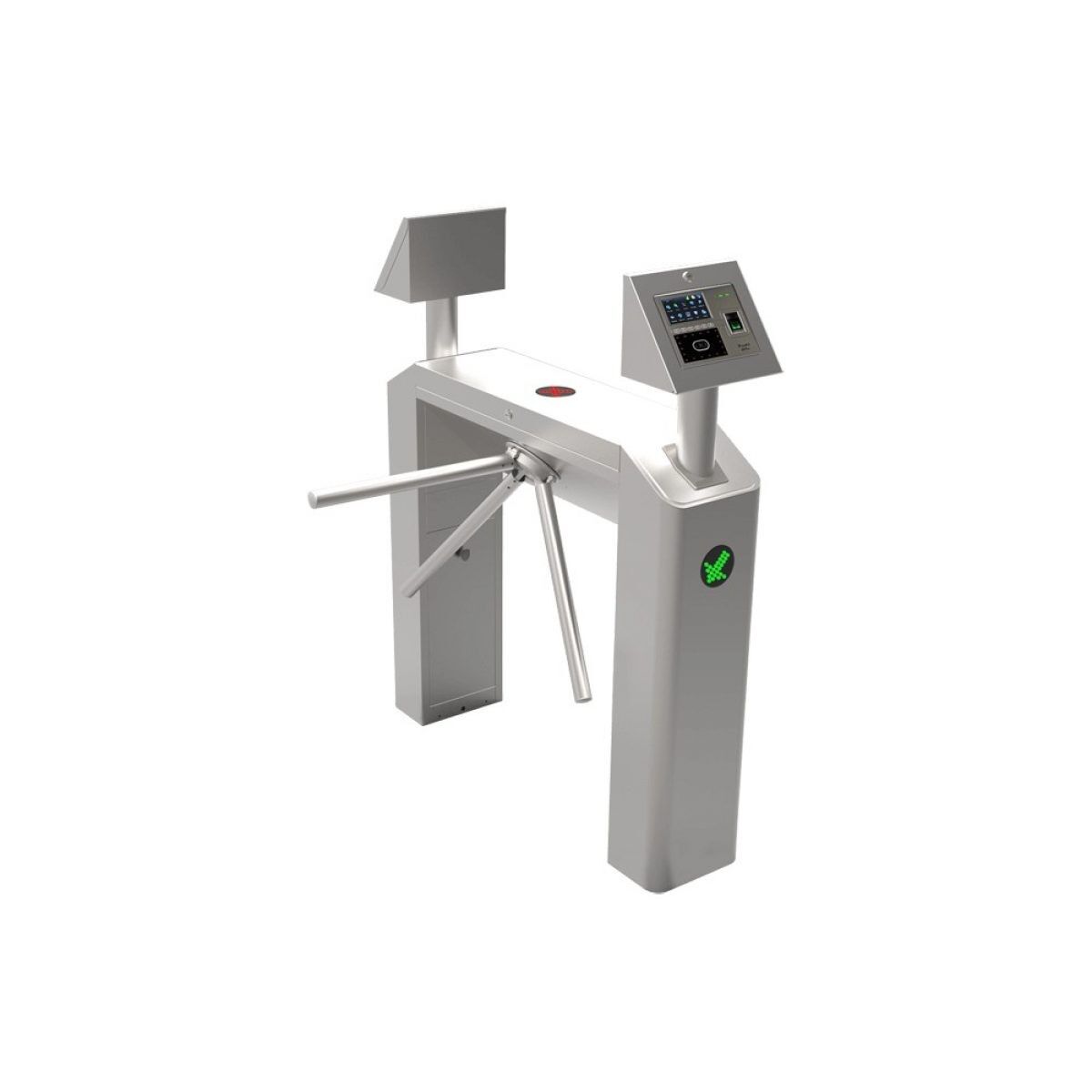

Zkteco TS2033 Biometric Fixed Arm Tripod Turnstile

Call for Price

In stock

Tripod turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people.
The TS2033 offers a slim, two-legged casework made of stainless steel, ideal for sites where large flows of people and space are issues.
On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. The status is shown on the led-way mode indicators on the top.Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism.In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators included as standard.

Description

Zkteco TS2033 Biometric Fixed Arm Tripod Turnstile

Reliability

• Alloy steel tripod hub prevents mechanical wear
• Casework and tripod arms manufactured in SUS304 stainless steel
• Electromagnets for lock are used only when activated. They are in standby mode when
the device is idle.
• ZK patented compact mechanism ensue the long life of the lubricating oil inside.
• High quality electrical components

Safety and User-Orientated Design

• Drop arm design for emergency purpose
• There are no exposed screws, it is safer for the user.
• Smooth operation designed for mas transit application
• The pictogram on the device indicating access permission
and direction of movement
• Special designed case shape, it is user-friendly for passenger
to punch card or finger.
• Anti-tailgate

Easy Integration

• Flexible reader installation plate. Customer can easily integrate third party reader.
• Standard electrical interface for third party device.
• Using compact mechanism, the turnstile has more space inside for integration
• ZKTeco provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just and plug in and do the setting. Save the cost of installation.
• The two columns at the ends provide more space for system integration

Specifications

Power SupplyAC 220V/110V, 50/60Hz
Operating Temperature-28 °C- 60 °C
Operating Humidity5%-85%
Working EnvironmentIndoor/Outdoor(shelter)
Rated Power60W
Flow Rate25- 48 passage/minute
Ingress ProtectionIP54
Casework MaterialSUS304
Pictogram IndicationYes
Control SystemInput controlled by dry contact
Emergency Button InputYes
Dimension111×133×26(CM) + arm length 50CM
Package Dimension120×108×38(CM)
Net Weight51KG
Gross Weight with Package59KG
Optional FunctionAlternative Material or shape, third-party access control integration,
ticket system integration, passage counter
