ZKTeco IN05-A Fingerprint Recognition TA & Access Terminal

Call for Price

In stock

• Built in PoE
• 1 channel auxiliary input for smoke detector connection
• Built in battery, up to 4 hours
• Multiple communicate mode, Wi-Fi, TCP/IP, 3G, USB host
• Stable operation under strong light source
• Advance access function including Lock connection, alarm, Wiegand input/output

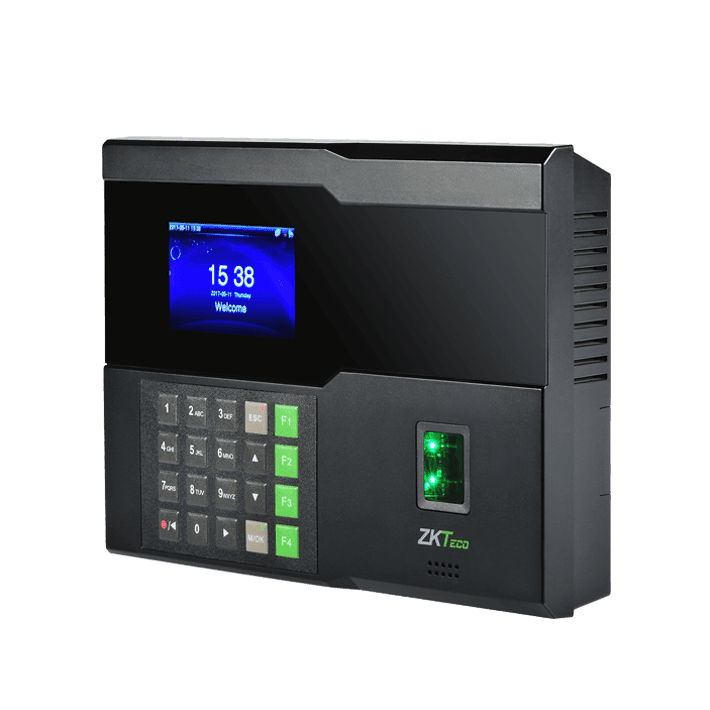

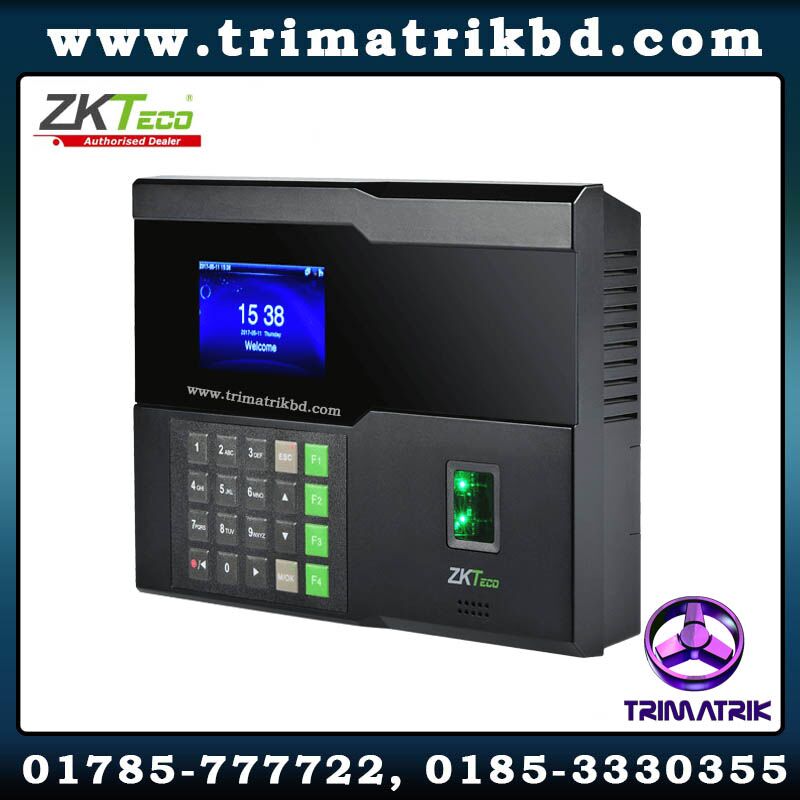

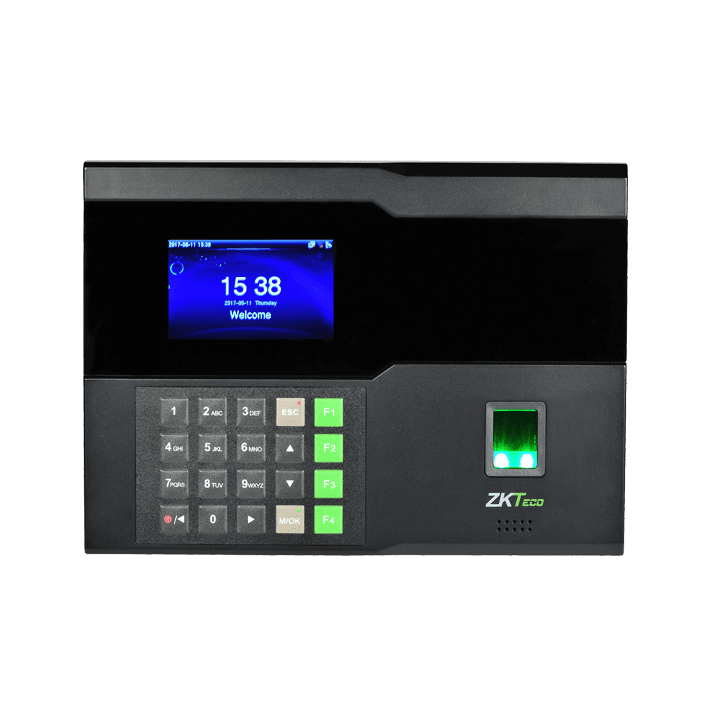

ZKTeco IN05-A

IN05 is a fingerprint identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor and exit button etc.

Communicating via Wi-Fi, TCP/IP, 3G and USB host, it ensures a smooth connection and data transfer.

It’s associated with ZK new fingerprint reader, the operation remains stable under strong light source and high preciseness of verification of wet and rough fingers. Amazing verification speed and intuitive Operation process make it popular. It will match your slap-up office perfectly.

Technical Specifications:



RF Optional125kHz EM / 13.56MHz MF
CapacityMax User(1:N)10,000
Max Fingerprint (1:N)3,000 standard / 10,000 Optional
Max Record100,000
InterfaceTCP/IP10/100 M
PoE Optional802.3 at 28W
Wi-Fi802.11 B/G/N
3G OptionalWCDMA
USBUSB 2.0 (Host)
RS2321 port for external printer
RS4851 port for FP reader
Relay2 relays
Wiegand1ch In & Out
Input1 Input
HardwareLCD3.0” Color LCD
Operating Temp.0 °C – 45 °C
Operating Humidity20% ~ 80%
PowerDC 12V 3A
Dimensions(W x H x D mm)213*155*107.81mm
CertificatesCE, FCC, RoHS
FunctionStandardAutomatic Status Switch, Self-Service Query, DST, T9 Input, 9 Digit
User ID, Scheduled Bell, Photo ID, Lock, sensor, Exit button
OptionaID / MF, ADMS
CompatibilityZKTime.net 3.0, ZKTime.web 2.0, ZKTime 5.0, ZKAccess 3.5
