ZKTeco ZK-VSCN200 Permanent Under Vehicle Inspection System

Call for Price

In stock

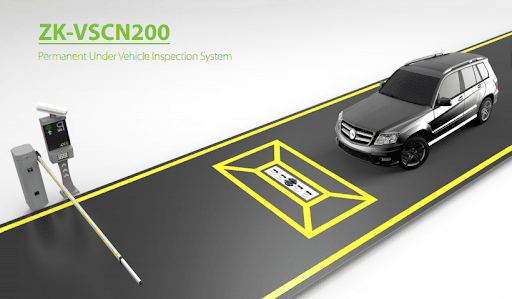

ZK-VSCN200 is a permanent under vehicle inspection system, is used to detect vehicle undercarriage. When the vehicle passes, system can quickly recognize the vehicle license plate and generate a high definition image of vehicle undercarriage, which will be recorded in the computer. With foreign object detection function, system can quickly and accurately identify suspect objects attached to the underside of vehicles.
ZK-VSCN200 is a powerful tool to provide profession inspection in incoming and outgoing traffic with a few seconds. Controls are thoroughly carried out and information of the inspection is stored in a structured database. This data is searchable according to time or
license plate number. This under vehicle inspection system greatly improves the efficiency and accuracy of security check in order to achieve a higher level of safety.

ZKTeco ZK-VSCN200

Scanning cameraHigh-speed line-scanning camera
Vertical resolution of the image>6000*2048 pixels
Speed of vehicle1-60km/h (Recommended speed: ≤30km/h)
Effective field of view (FOV)Less than 170°
Auxiliary light320W
Weight capacity50T
Water-proof gradeIP68
Scanner weight105KG
Scanner size1100mm*280mm*205mm
Package weight140KG+51KG (Distribution box) +90KG (Console desk)
Package size1300mm*450mm*480mm
700mm*400mm*1200mm (Distribution box)
800mm*750mm*1560mm (Console desk)
Storage1TB hard disk
Operating voltageAC 220V/110V, 50-60HZ
Surveillance camera2MP HD camera
