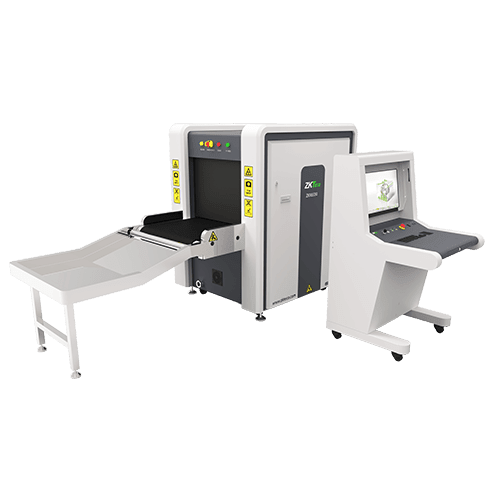

ZKTeco ZKX6550 Innovative Biometric Identify Baggage Scanner

Call for Price

In stock

ZKX6550 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
ZKX6550 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX6550 could offer clear scanning image, which allows operators to identify potential threat items visually.
ZKX6550 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.
With ergonomic modern design, ZKX6550 could help operators to identify suspicious items fast and accurately.

ZKTeco ZKX6550 Bangladesh

Delivery: 45 Days After Confirmed Work Order

Specifications
Tunnel SizeW655mm × H505mm
Speed0.20m/s
Hight of Transmission Belt700mm
Maximum Load≤180Kg(Adequate distribution)
Wire Resolution40 AWG(0.0787mm metal wire)
Space DefintionHorizontalΦ1.0mm/VerticalΦ2.0mm
Penetrate Definition34 AWG
Penetration38mm Steel board
Monitor21.5 inch LED
System FunctionHigh density alarm, Explosive/Drug auxiliary detect,
TIP, Luggage counter, System running timer, X-ray
emitting timer, Training, 64 times continuous zoom in
Film SafetyASA/ISO1600 standard of film safety
X-ray System
Tube Voltage150kV
CoolingSeal oil cooling/100%
Single Inspection Dosage Rate≤1.0μGy
Radiation Leak Dosage0.1 μ Gy/h (5cm from the surface)
Installation Specification
Package SizeL2240mm × W1170mm × H1755mm
Console Desk SizeL805mm × W900mm × H1320mm
Package Weight680KG+105KG(Console desk)
Power Consumption1kVA
Noise53.8dB(A)

Download

ZKX6550

0.63 MB

2017-08-17

ZKX6550

User Manual of ZKX

5.95 MB

2018-03-01

User Manual of ZKX
