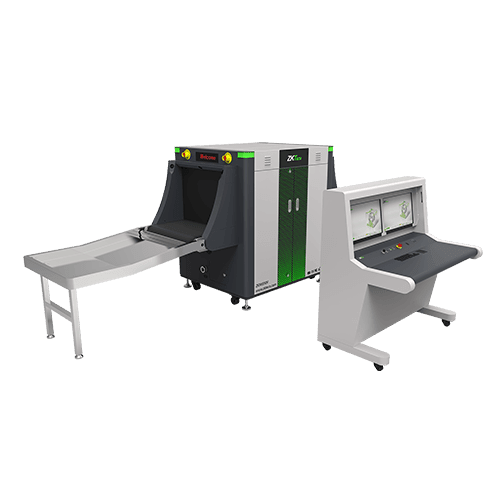

ZKTeco ZKX6550V Bangladesh
Delivery: 45 Days After Confirmed Work Order
Specifications | |
Tunnel Size | W655mm × H505mm |
Speed | 0.20 m/s |
Height of Transmission Belt | 700 mm |
Maximum Load | ≤180 kg (Adequate distribution) |
Wire Resolution | 40 AWG |
Space Definition | Horizontal Φ1.0mm \ Vertical Φ2.0mm |
Penetrate Definition | 34 AWG |
Penetration | 38mm steel board |
Monitor | 21.5 inch LED x 2 |
System Function | High density alert, Explosive/ Drug auxiliary detect, TIP, Luggage counter, date/time display, User management, Training. |
Film Safety | ASA/ISO1600 standard of film safety |
X-ray System | |
Tube Voltage | 150Kv |
Cooling | Seal oil cooling / 100% |
Single Inspection Dosage Rate | ≤1.0 μ Gy |
Radiation Leak Dosage | 0.1 μ Gy/h (5cm from the surface) |
Installation Specification | |
Package Size | L2240mm × W1170mm × H1755mm |
Console Desk Size | L830mm × W800mm × H1330mm |
Package Weight | 640KG+100KG(Console desk) |
Power Consumption | 1 kVA |
Noise | 53.8 dB(A) |
