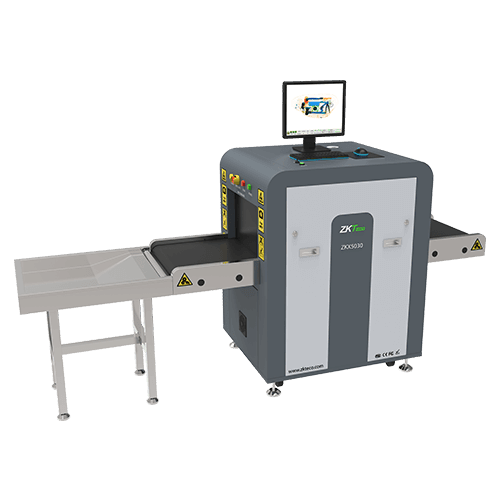

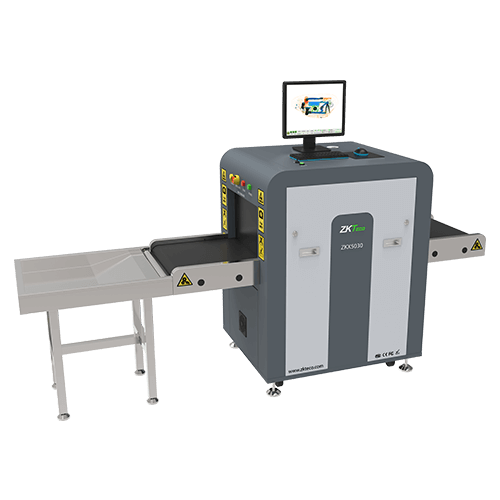

ZKTeco ZKX5030A X-ray Inspection system / Baggage Scanner

Call for Price

In stock

ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry on baggage, small cargo parcels.
ZKX5030A uses reliable high quality single energy X-ray generator. With the superb image algorithm, ZKX5030A could offer clear scanning image, which allows operators to identify potential threat items visually. With ergonomic modern design, ZKX5030A could help operators to identify suspicious items fast and accurately.

ZKTeco ZKX5030A Bangladesh

Parameter

Tunnel SizeW507mm*H305mm
Speed0.20m/s
Hight of Transmission Belt1000mm
Maximum Load≤120Kg(Adequate distribution)
Wire Resolution34 AWG(0.16mm metal wire)
Space DefintionHorizontalΦ1.0mm/VerticalΦ2.0mm
Penetrate Definition32 AWG
Penetration8mm Steel board
Monitor17 inch LED
System FunctionHigh density alarm, TIP, Luggage counter, System running timer, X- ray emitting timer, System maintainance, Training, 64 times continuous zoom in
Film SafetyASA/ISO1600 standard of film safety
Tube Voltage80kV
CoolingSeal oil cooling/100%
Single Inspection Dosage Rate≤1.0μGy
Radiation Leak Dosage0.1μGy/h(5cm from the shell)
Package SizeL1900mm*W990m*H1320mm
Package Weight410KG
Power Consumption1kVA
Noise53.8dB(A)
